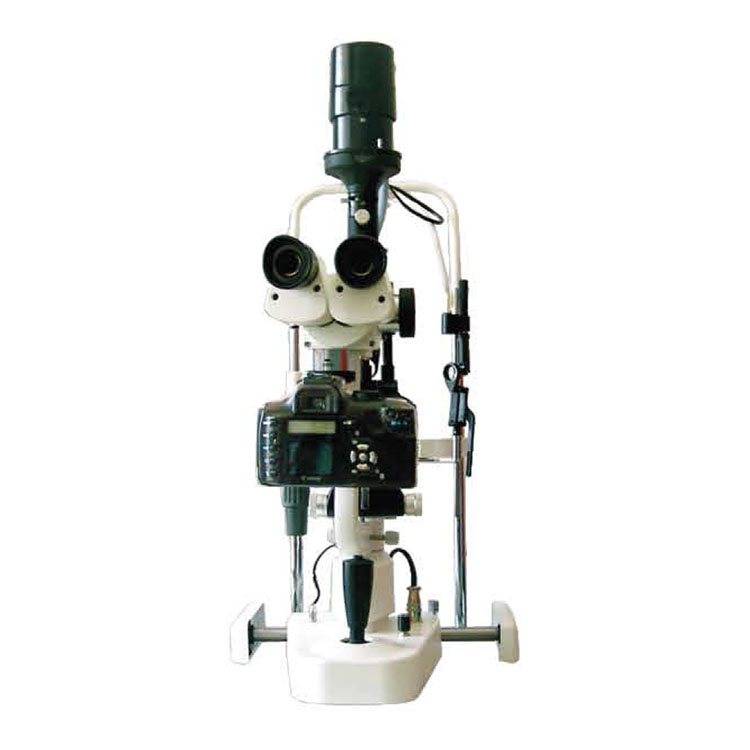

Features:

  1. The digital camera is capable of 8.2 million pixels.
  2. Slit Lamp YZ-5S covers all the functions and characteristics of YZ-5F1.
  3. It has background illumination system.
  4. Photos can be taken by the button on the joystick.

Specifications:

  1. Microscope Type: Parallel included angle type
  2. Magnification: Five-step magnifications
  3. Eye Piece: 12.5X
  4. Total Magnification and Field of View (MM): 6x (Φ33), 10x (Φ22.5), 16x (Φ14), 25x (Φ8.80), 40x (Φ5.5)
  5. Range of Pupil Distance: 55MM – 75MM
  6. Adjustment of Diopter: -5D ~+3D
  7. Slit Width: 0MM – 9MM adjustable
  8. Slit Height: 1MM – 8MM adjustable
  9. Slit Angle: 0° – 180°
  10. Slit Inclination: 5°, 10°, 15°, 20°
  11. Light Spot Diameter: Φ14, Φ10, Φ5, Φ2, Φ1, Φ0.2
  12. Filter: Heat absorption, grey, redfree, cobalt blue
  13. Illumination Bulb: 12V/30W halogen bulb
  14. Voltage/Frequency: AC220V ± 10%/60HZ ±1HZ, AC110V ± 10%/50HZ ± 1HZ
  15. Power: 58VA
  16. Electrical safety standard: Conform to Standard IEC 601-1, Class1 Type B
  17. Whole Packaging Volume: 0.30M3
  18. Carton Number: 2
  19. Total Weight: 51KGS

Accessories:

Weight2400 g
Dimensions72 × 49.5 × 48 cm
